PHYSICAL CHARACTERISTICS

   Jacket elongation: min 100%(PVC).125%(LSOH)
   Jacket tensile strength: min 1.407Kgf/mm2(PVC)    0.917Kg/mm2(LSOH)
   After aging jacket tensile strength: Min tensile strength:75%(PVC)   70%(LSOH)
   After aging jacket elongation: Min elongation retention :50%(PVC)  75%(LSOH)

ELECTRICAL CHARACTERISTICS

   Impedance: 125 Ohm 20%(64KHz).    100 Ohm 15%(1~500MHz)
   D.C.R (Max.) : 9.38Ohm /100m at 20℃
   D.C.R. Unbalance (Max.) : 2% MAX.
   Mutual Capacitance: nom. 5600pf/100m
   Capacitance, unbalance (Max.): 160 pF/100m DC
   Insulation Resistance (Min.): 5000 Mohm/Km
   Dielectric Strength: 1500 Vdc / 2 second

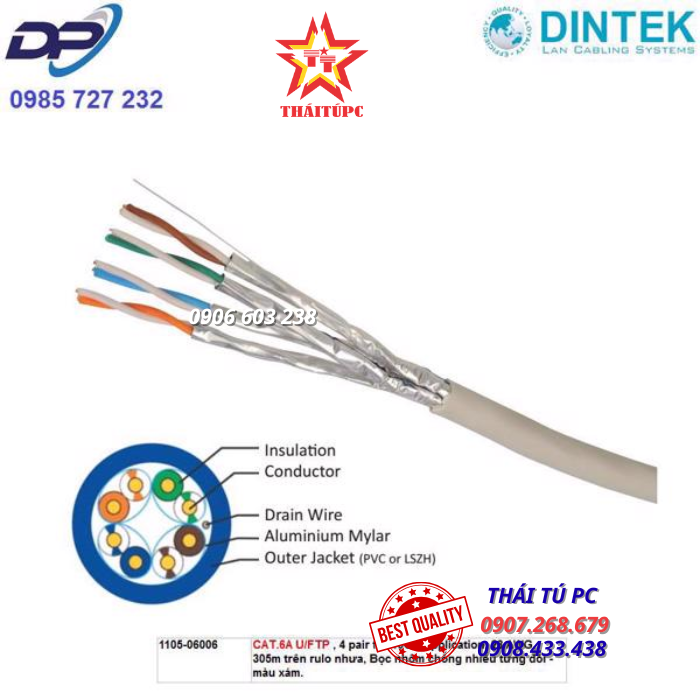

Cable Structure

   Twisted pair color code:
Pair 1> blue, white/blue ring.
Pair 2> orange, white/orange ring
Pair 3> green, white/green ring
Pair 4> brown, white/brown ring
   Conductor: 23AWG solid Bare copper 0.583mm±0.02mm
   Insulation material: Foam-Skin PE
   Diameter of dielectric core: 1.42±0.05mm
   Number of twist pairs: 4 pairs
   Individual Shielding: A layer of aluminum-foil laminated tape will be wrapped over the twinning, the aluminum side face-out.
   Assembly: 4 pairs of dielectric core shall be stranded in circular form.
   Overall Shielding:  aluminum-foil laminated tape
   Material of jacket: Comes in either PVC or LSZH
   Overall Diameter: Ave 7.3±0.3mm
